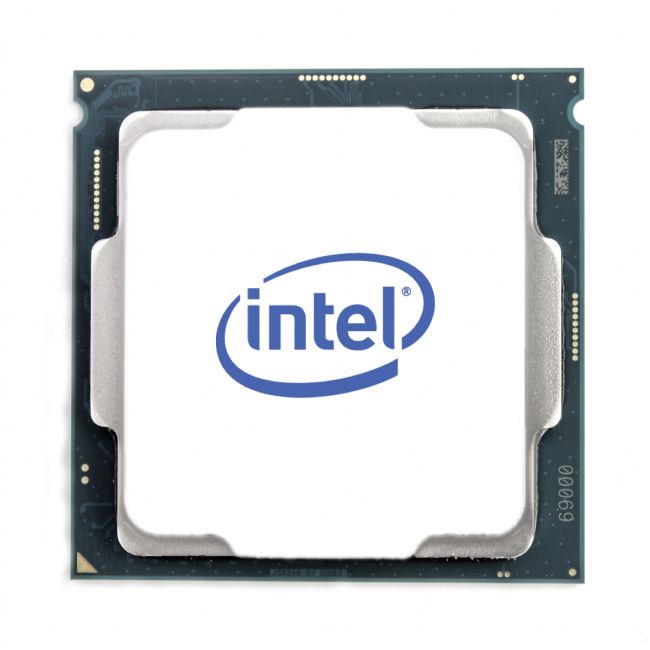

Intel Core i5-9400 (Boxed) - socket 1151
Levertijd: niet voorradig, levertijd onbekend. € 236,25
Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor’’s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® VT-x with Extended Page Tables (EPT)
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.
Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.ą Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.
Instruction Set
An instruction set refers to the basic set of commands and instructions that a microprocessor understands and can carry out. The value shown represents which Intel’s instruction set this processor is compatible with.
Instruction Set Extensions
Instruction Set Extensions are additional instructions which can increase performance when the same operations are performed on multiple data objects. These can include SSE (Streaming SIMD Extensions) and AVX (Advanced Vector Extensions).
Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.
Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
Thermal Monitoring Technologies
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core’’s temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.
Intel® Identity Protection Technology
Intel® Identity Protection Technology is a built-in security token technology that helps provide a simple, tamper-resistant method for protecting access to your online customer and business data from threats and fraud. Intel® IPT provides a hardware-based proof of a unique user’s PC to websites, financial institutions, and network services; providing verification that it is not malware attempting to login. Intel® IPT can be a key component in two-factor authentication solutions to protect your information at websites and business log-ins.
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor’’s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® VT-x with Extended Page Tables (EPT)
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.
Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.ą Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.
Instruction Set
An instruction set refers to the basic set of commands and instructions that a microprocessor understands and can carry out. The value shown represents which Intel’s instruction set this processor is compatible with.
Instruction Set Extensions
Instruction Set Extensions are additional instructions which can increase performance when the same operations are performed on multiple data objects. These can include SSE (Streaming SIMD Extensions) and AVX (Advanced Vector Extensions).
Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.
Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
Thermal Monitoring Technologies
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core’’s temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.
Intel® Identity Protection Technology
Intel® Identity Protection Technology is a built-in security token technology that helps provide a simple, tamper-resistant method for protecting access to your online customer and business data from threats and fraud. Intel® IPT provides a hardware-based proof of a unique user’s PC to websites, financial institutions, and network services; providing verification that it is not malware attempting to login. Intel® IPT can be a key component in two-factor authentication solutions to protect your information at websites and business log-ins.
| Processor | |
| Processorfamilie | Intel® 9de generatie Core™ i5 |
| Frequentie van processor | 2,9 GHz |
| Aantal processorkernen | 6 |
| Processor socket | LGA 1151 (Socket H4) |
| Component voor | PC |
| Processor lithografie | 14 nm |
| Box | Ja |
| Processormodel | i5-9400 |
| Processor aantal threads | 6 |
| Systeembus | 8 GT/s |
| Processor operating modes | 64-bit |
| Processorserie | 9th Generation Intel Core i5 Processors |
| Processor cache | 9 MB |
| Processor cache type | Smart Cache |
| Maximale turbofrequentie van processor | 4,1 GHz |
| Bus type | DMI3 |
| Codenaam processor | Coffee Lake |
| Geheugenbandbreedte ondersteund door de processor ( max) | 41,6 GB/s |
| ARK ID processor | 134898 |
| Generatie | 9th Generation |
| Geheugen | |
| Geheugen kanaal | Dual |
| Maximaal intern geheugen ondersteund door processor | 128 GB |
| Geheugentypen ondersteund door processor | DDR4-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor | 2666 MHz |
| ECC | Nee |
| Gewicht en omvang | |
| Verpakkingsgrootte processor | 37.5 x 37.5 mm |
| Energie | |
| Thermal Design Power (TDP) | 65 W |
| Eisen aan de omgeving | |
| Tjunction | 100 °C |
| Technische details | |
| Processorcache | 9216 KB |
| Producttype | Processor |
| Maximaal geheugen grafische adapter | 64 GB |
| Bandbreedte bus | 8 |
| Type buseenheden | GT/s |
| Lanceringsdatum | Q1’19 |
| Maximale resolutie & verversingsfrequentie (DisplayPort) | 4096x2304@60Hz |
| Maximale resolutie & verversingsfrequentie (HDMI) | 4096x2304@24Hz |
| Maximale resolutie & verversingsfrequentie (Integrated Flat Panel) | 4096x2304@60Hz |
| Status | Launched |
| Maximaal geheugen | 128 GB |
| Merknaam processor | 9th Gen Intel Core i5 9th Gen Intel Core i5 Processor |
| Laatste wijziging | 63903513 |
| Productfamilie | Intel Core Processors |
| Bussnelheid | 8 GT/s |
| Processor-id | 0X3E98/x92 |
| Overige specificaties | |
| Maximaal intern geheugen | 131072 MB |
| Grafisch | |
| Ingebouwde grafische adapter | Ja |
| Aparte grafische adapter | Nee |
| On-board graphics adapter model | Intel® UHD Graphics 630 |
| Discreet grafische adapter model | Niet beschikbaar |
| Maximaal geheugen ingebouwde grafische adapter | 64 GB |
| Basisfrequentie ingebouwde grafische adapter | 350 MHz |
| Graphics on-board -adapter dynamische frequentie (max) | 1050 MHz |
| Aantal displays ondersteund (door on-board grafische adapter) | 3 |
| 4K-ondersteuning | Ja |
| On-board grafische adapter DirectX-versie | 12.0 |
| On-board grafische adapter OpenGL versie | 4.5 |
| Graphics aan boord maximale resolutie adapter (DisplayPort ) | 4096 x 2304 Pixels |
| Maximale resolutie (eDP - Integrated Flat Panel) | 4096 x 2304 Pixels |
| Maximale resolutie ingebouwde grafische adapter (HDMI) | 4096 x 2304 Pixels |
| Grafische adapter refresh rate on-board bij maximale resolutie (DisplayPort ) | 60 Hz |
| Refresh rate op maximale resolutie (eDP - Integrated Flat Panel) | 60 Hz |
| Verversingsfrequentie ingebouwde grafische adapter bij maximale resolutie (HDMI) | 24 Hz |
| On-board grafische adapter ID | 0X3E98/x92 |
| Processor speciale functies | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Nee |
| Intel® Identity Protection Technology (Intel® IPT) | Ja |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Ja |
| Intel® InTru™ 3D Technology | Ja |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Ja |
| Intel® AES New Instructions (Intel® AES-NI) | Ja |
| Enhanced Intel SpeedStep Technology | Ja |
| Intel® Trusted Execution Technology | Nee |
| Intel® Memory Protection Extensions (Intel® MPX) | Ja |
| Intel® Enhanced Halt State | Ja |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID) | Ja |
| Intel® VT-x with Extended Page Tables (EPT) | Ja |
| Intel® Secure Key | Ja |
| Intel® TSX-NI | Nee |
| Intel® Stable Image Platform Program (SIPP) | Nee |
| Intel® OS Guard | Ja |
| Intel® Clear Video-technologie | Ja |
| Intel® Software Guard Extensions (Intel® SGX) | Ja |
| Intel® 64 | Ja |
| Versie Intel® Identity Protection Technology | 1,00 |
| Versie Intel® Secure Key Technology | 1,00 |
| Versie Intel® Stable Image Platform Program (SIPP) | 0,00 |
| Intel® Virtualization Technology (VT-x) | Ja |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
| Versie Intel® TSX-NI | 0,00 |
| Intel® Optane™ Memory Ready | Ja |
| Intel® Boot Guard | Ja |
| Intel® vPro™ Platform Eligibility | Nee |
| Kenmerken | |
| Execute Disable Bit | Ja |
| Idle States | Ja |
| Thermal Monitoring Technologies | Ja |
| Maximaal aantal PCI Express-lijnen | 16 |
| PCI Express slots versie | 3.0 |
| PCI Express configuraties | 1x8+2x4,1x16,2x8 |
| Ondersteunde instructie sets | AVX 2.0,SSE4.1,SSE4.2 |
| Schaalbaarheid | 1S |
| CPU configuratie (max) | 1 |
| Ingebouwde opties beschikbaar | Nee |
| Thermal solution specificatie | PCG 2015C |
| PCI Express CEM revisie | 3.0 |
| Marktsegment | DT |
| Code geharmoniseerd systeem (HS) | 8542310001 |
