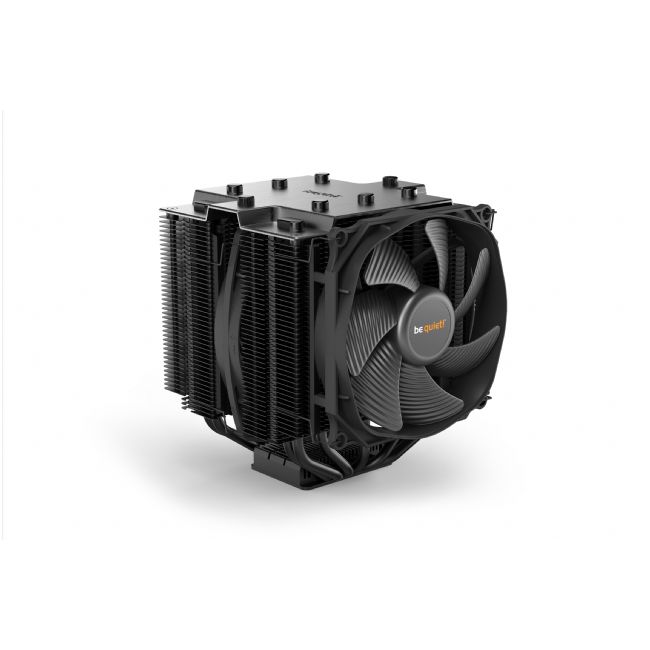

Be Quiet! Dark Rock Pro TR4

Levertijd: direct uit voorraad leverbaar.
€ 79,90
  • Klik op de foto voor een vergroting.
  • Toon alle producten van Be Quiet!.
Merk: Be Quiet!

EAN code: 4260052186985
SKU code: BK023
IMMENSE COOLING POWER
For AMD TR4 motherboards
No compromise in silence and performance for overclocked systems and demanding graphics applications! Dark Rock Pro TR4 is designed for AMD TR4 only and provides an impressive rating of 250W TDP.

VIRTUALLY INAUDIBLE OPERATION
Even at 100% PWM fan speed noise is an insignificant 24.3dB(A)
The two Silent Wings PWM fans feature advanced fluid-dynamic bearings, smooth six-pole motors and airflow-optimized fan blades. The front Silent Wings 3 fan provides extremely high air pressure, thanks to a funnel-shaped air inlet in the frame. Decoupled fan mounting with vibration-isolating elements on the heat sink.

HIGHLY ADVANCED DESIGN
The core features that result in high-end cooling
Dark Rock Pro TR4 is equipped with seven advanced technology 6mm copper heat pipes that maximize the heat conductance. Airflow-optimized, wave-contoured cooling fins with small dots on their surfaces increase the air circulation. The special black coating with ceramic particles makes a perfect transfer of heat possible.

DOUBLE-TOWER LAYOUT
Powerful cooling for your components
Dark Rock Pro TR4 contains two aluminum heat sinks. The cutouts provided enhance its RAM compatibility. Two fans are pre-installed. It is also possible to add another 120mm fan for even better cooling.

USER-FRIENDLY ELEGANCE
Stylish and easy to install
The mounting kit for the Dark Rock Pro TR4 cooler is completely black, perfectly matching the black design of the cooler itself. You can conveniently install the cooler on the motherboard from above. The brushed aluminum top cover with its diamond cut finish adds a touch of elegance to this high-end cooler.

- Designed for AMD TR4 only
- Two virtually inaudible Silent Wings PWM fans
- Funnel-shaped frame of the front fan for high air pressure
- Achieves only 24.3dB(A) at maximum fan speed
- Seven high-performance copper heat pipes
- Airflow-optimized cooling fins; cutouts enhance the RAM compatibility
- Easily installable black installation kit can be mounted from above
- Brushed aluminum top cover with diamond cut finish

Poorten & interfaces
Fan connector4-pin
Gewicht en omvang
Gewicht1,18 kg
Maten ventilator (b x d x h)135 x 135 x 22 mm
Warmte pijpen diameter6 mm
Breedte verpakking205 mm
Diepte verpakking181 mm
Hoogte verpakking212 mm
Gewicht verpakking1,58 kg
Energie
Nominale netspanning0,08 A
Thermal Design Power (TDP)250 W
Inhoud van de verpakking
Type verpakkingDoos
Meegeleverde kabelsVentilator
Montage gereedschapJa
KoelpastaJa
Design
MateriaalAluminium
Aantal ventilatoren2 ventilator(en)
Aantal warmte pijpen7
RoHS complianceJa
Prestatie
Geschikt voorProcessor
SoortKoeler
Ventilator diameter120/135 mm
Supported processor socketsSocket TR4
Compatibele processorsAMD Ryzen
Rotatiesnelheid ( max)1500 RPM
Geluidsniveau (lage snelheid)12,8 dB
Geluidsniveau (hoge snelheid24,3 dB
Pulsbreedtemodulatie-ondersteuningJa
Type lagerFluid dynamic bearing (FDB)
Gemiddelde storingsinterval (MTTF)300000 uur
Logistieke gegevens
Breedte van de omdoos56,1 cm
Lengte omdoos42,7 cm
Hoogte van de omdoos45,9 cm
Gewicht omdoos20,8 kg
Hoeveelheid per omdoos12 stuk(s)
